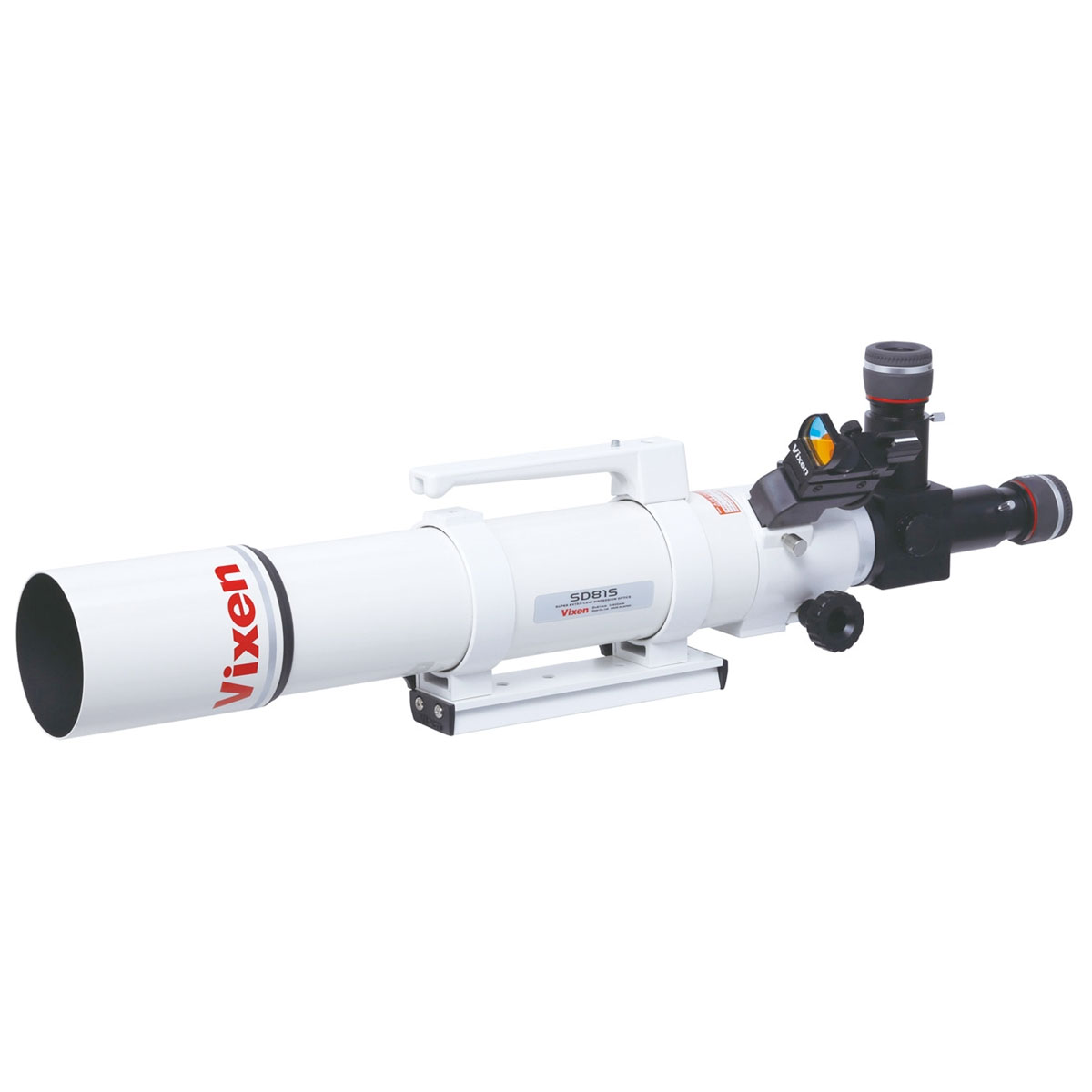

Vixen SD81S Apochromatic Refractor

£985.00

(Inc. 20% VAT)

Special order item, Please contact us for an ETA

–

Model

X000061

Brand

Vixen

Description

The Vixen ED refractor range has been redesigned in order to allow the use of full frame DSLR camera sensors and yet are still compact and portable. The range is now designated SD (standing for Super extra low Dispersion glass) and includes the same 81mm, 103mm and 115mm variants.

Thanks to an improved baffle system, the incoming light near the edge of field of view has been increased when compared to the previous generation models.

The SD range now has its own dedicated field flattener and focal reducer. These help to deliver pin sharp star images across the field of view of a 35mm full-frame image sensor.

At only 625mm in length the SD81 is the smallest and most portable in Vixen's new SD range. Perfect for observation and imaging on the move.

Specifications

Technical Data

FIELD OF APPLICATION
Field of application	Deep Sky Observation Deep Sky Photography Lunar observation Lunar photography Planetary observation Planetary photography
FOCUS GROUP
Focus Group	Beginners Advanced Amateurs Visual enthusiasts
PRODUCT FAMILY
Product Family	Refractor telescope
OPTICAL SPECIFICATIONS
Optical design	Apochomatic Refractor
Maximum recommended magnification	160
ED glass	✓
Focal length	625 mm
Angular resolution	1.43 arc seconds
Visual limiting magnitude (approx., mag)	11.3
Type of coating	Multi coated Fully multi-coated
Colour of coating	green
GENERAL TECHNICAL DATA
Mount Type	Optics without Mount
DIMENSIONS & WEIGHTS
Total length	585 mm
Total width	90 mm
Net weight heaviest part	3.6 kg

What's in the Box
