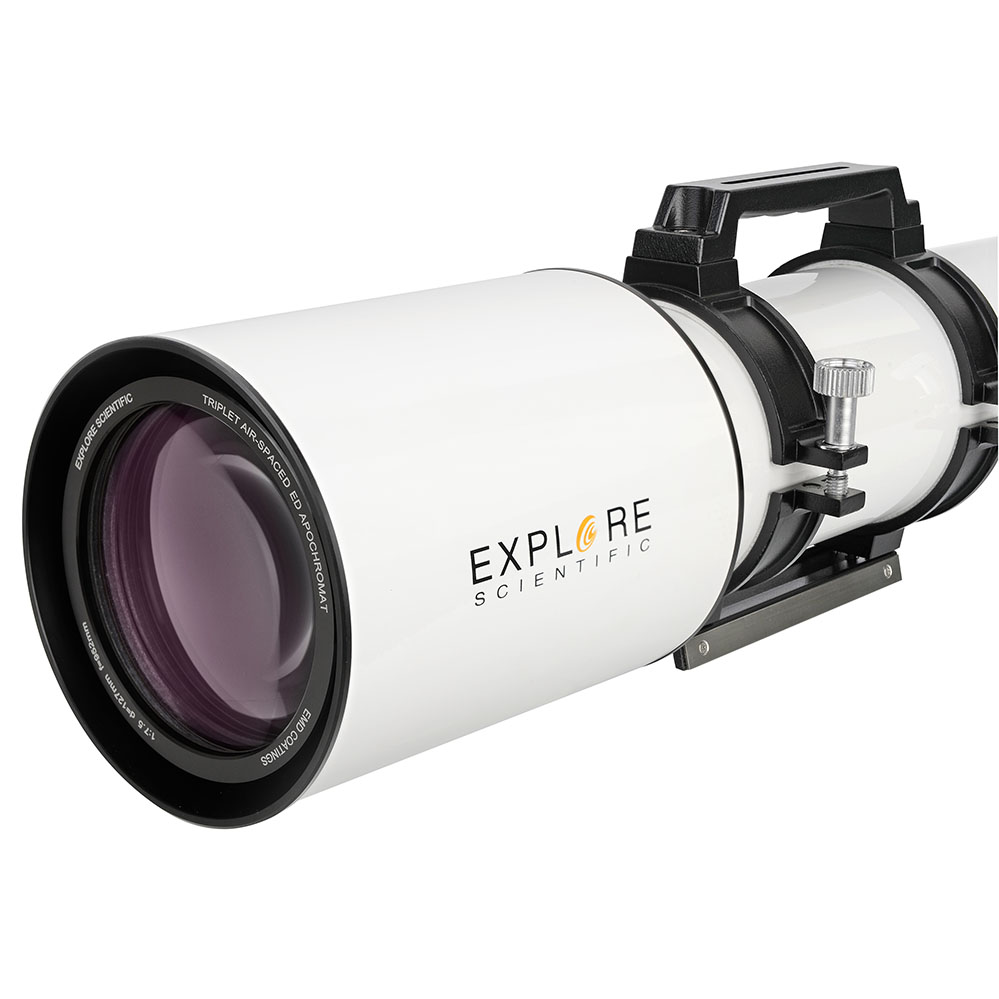

Explore Scientific ED APO 127mm f/7.5 FCD-1 Alu 2'' R&P Focuser

£1,599.00
(Inc. 20% VAT)
Special order item, Please contact us for an ETA
+
Model
112132
Brand
Explore Scientific
Telescope Type
APO Doublet Refractor
Aperture (mm)
127 mm
Description

The three-lens design of the EXPLORE SCIENTIFIC ED-Apochromats provides everything an amateur astronomer desires - at a reasonable price. The construction with Hoya FCD001 ED glass has two air spaces and provides a level of correction so superior to the two-lens constructions, that are common in this price class, that you will see the difference immediately.

This excellent optical performance teams up with a high precision mechanics - the result is a telescope on a level that is setting a new standard in it´s price class. Astrophotographers will love this telescope - a optional field flattner is available and makes the telescope perfect even for cameras with a large chip format.

These very popular EXPLORE SCIENTIFIC Triplet ED APO Refractors we do offer in 3 different product lines:

Essential Line:
HOYA FCD-1 Glass lens, AL-Tube, 2.0'' Rack&Pinion Focusser with 1:10, 2.0'' Star Diagonal 99% Reflectivity (see Part No. 0112084(AL), 0112106(AL), 0112132(AL)), 0112155(CF + 3''FT)).

Professional Line:
HOYA FCD-100 Glas lens, AL/CF-Tube, 2.5'' HEXAFOC Focusser with 1:10, 2.0'' Star Diagonal 99% Reflectivity (see Part No. 0112086(AL), 0112108(AL), 0112109(CF), 0112134(AL), 0112135(CF)).

High-End Line:
OHARA FPL-53 Glass lens, Carbon(CF) Tube, 3.0'' Feather-Touch Focusser with 1:10, 2.0'' Star Diagonal 99% Reflectivity (see Part No. 0112165(CF)).

Specifications
SPECIFICATIONS:
  • Aperture: 127mm
  • Focal Length: 952mm
  • Focal Ratio: f/7,5
  • Weigth: 7,7kg
  • Backfocus: 165mm above 2'' adaptor
SCOPE OF DELIVERY
  • Optics with dovetail plate and finder slot
  • 2'' Star Diagonal 99% reflectivity
  • Dust caps for front-lens and focuser
FIELD OF APPLICATION
Field of application
  • Deep Sky Observation
  • Deep Sky Photography
  • Lunar observation
  • Lunar photography
  • Planetary observation
  • Planetary photography
FOCUS GROUP
Focus Group Advanced Amateurs
PRODUCT FAMILY
Product Family Refractor telescope
OPTICAL SPECIFICATIONS
Optical design Apochomatic Refractor
Maximum recommended magnification 250
ED glass
Mirror/Lens diam. 127 mm
Focal length 952 mm
Angular resolution 1 arc seconds
Type of coating Enhanced Multilayer Desposition (EMD)
Width of image field width 24x36 mm receiver 1.8 degrees
Height of image field width 24x36 mm receiver 1.2 degrees
GENERAL TECHNICAL DATA
Material OTA Aluminium
Focusing system 2" Rack-and-Pinion Focuser with 10:1 reduction
Colour white
Dust protection caps Dust protection caps for front lens and eyepiece holder
Mount Type Optics without Mount
Extended warranty 10 years
DIMENSIONS & WEIGHTS
Net weight OTA (incl. accessories) 7.7 kg
