Baader UFC S70 Extensions

Baader UFC S70 Extensions

£25.00
(Inc. 20% VAT)
Choose Size
–
+
Model
2459141
Brand
Baader Planetarium
Description

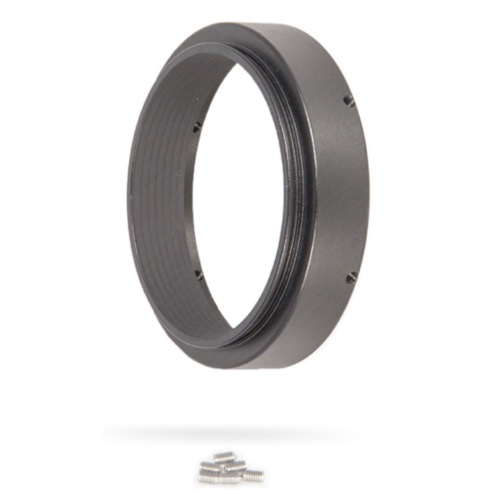

Baad​er UFC S70/5 Extension 5mm, 15mm or 40mm

  • telescope-sided with S70 dovetail clamp (screws included)
  • camera-sided with S70 dovetail
  • can be adapted via the S70 dovetail to the UFC filter base #2459110 and allows adaption of telescope-sided adapters with the S70 dovetail clamp
Specifications
Part NumberDescription
2459110UFC Base (Filter Chamber) with receptor for S70 Dovetail
2459112UFC 2" Filter Slider M48 (for cell mounted 2" filters)
2459113UFC Filter Slider D50 (for filter 0 50mm up to 50.5mm)
2459114UFC Filter Slider 50x50  (for filtersize 50 x 50mm up to 50.5mm square)
2459115UFC T-Adapter, connects to camera T-Ring with Mounting plate for UFC Base
2459116UFC M48 Adapter, M48 (m) thread facing camera with Mounting plate for UFC base
2459117UFC M54 Adapter,M54x0.75(m) thread facing camera w/ Mounting plate for UFC Base
2459118UFC M68 Adapter,M68 x 1 (f) thread facing camera w/mounting plate for UFC Base
2459119UFC protective EOS T-Ring Adap,S52 dovetail connects to T-Ring w/ Mounting plate
2459120UFC 2" SC Adapter, 2" (m) thread facing camera w/ Mounting plate for UFC Base
2459122UFC FLI Adapter, connects to FLI camera, for ML and PL Flange w/Mounting plate
2459126UFC S70 / 11"/ 14" RASA Adapter, RASA Plate facing telescope w/S70 Dovetail
2459127UFC S70 / M68 Adapter, M68 (m) thread facing telescope w/S70 Dovetail
2459128UFC S70 / 2" Adapter, 2" SC thread (f) facing telescope w/S70 Dovetail
2459129UFC  S70 / M48 Adapter, M48 (f) thread facing telescope w/S70 Dovetail
2459130UFC S70 / T-2 Adapter, T-2  (f) thread facing telescope w/S70 Dovetail
2459131UFC S70 / C8 Hyperstar / SC / HD Adapter with S70 Dovetail
2459132UFC S70 / C11 / C9.25 Hyperstar / SC /HD Adapter with S70 Dovetail
2459133UFC S70 / C14 Hyperstar / SC/ HD Adapter with S70 Dovetail
2459141UFC S70/5 Extension 5mm with S70 Dovetail/Dovetail-clamp-screws
2459142UFC S70/15 Extension 15mm with S70 Dovetail/Dovetail-clamp-screws
2459143UFC S70/40 Extension 40mm with S70 Dovetail/Dovetail-clamp-screws
2459145UFC S70 Varilock 15-20mm with S70 Dovetail and receptor for S70 Dovetail
2459121UFC Straylight Flange when mounting UFC in front of camera lenses incl Mounting plate for UFC Base
2459134UFC SP54 for adapting UFC Base onto camera lenses (requires Baader Hyperion lens adapter rings)
