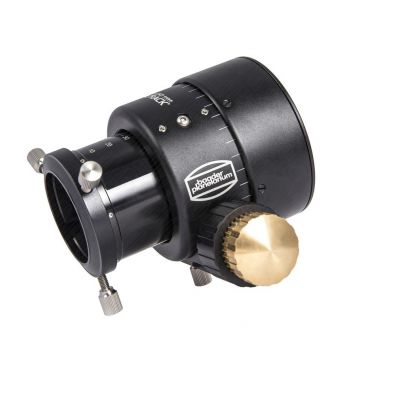

Baader SteelTrack Diamond SC/HD 2" Focuser for SCT Telescopes

Drive System:

• True diamonds form a micro-geared high precision drive system never accomplished before
• In comparison to conventional crayford or rack & pinion drives, this micro-geared movement has zero backlash, zero cogging, and zero flxure
• Diamond Steeltrack 2" focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive bearing preload (bearing preload can be increased further if necessary)
• Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings handles higher loads with greater rigidity and accuracy. No Tefln-pads anywhere
• 1:10 Stainless Steel fie-focus mechanism, ready for attachment of the optional Steeldrive temperature compensating motor drive system
• Detachable drive block assembly is reversible for right hand or left hand fie-focus operation and for attaching the Steeldrive motorblock onto Diamond-NT-Steeltracks for newtonian telescopes
• Shortest possible mechanical design achieves optimum balance between focuser height (backfocus) and rigidity requirements
• Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment

Focusing Drawtube:

• Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
• Ultra-hard subzero coated bearing races "_ precision milled and much harder than anodizing or stainless steel
• Oversized 55mm inner clear diameter, to prevent vignetting, with anti-reflction knife-edge baffles

Clamping System:

• S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 directthread adapters to enable direct thread connection of accessories and cameras without 2" clamp
• 2" eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ¶«") included as standard
• Optionally available 2" Baader Clicklock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8")
• Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated field flatteners or focal reducers/correctors

Telescope Adapters:

• Refractor-BDS (RT): Adapters available or under development to fi a wide variety of refractor telescopes
• Newtonian-BDS (NT): Includes Baader Versabase, for perfect fi onto most tube diameters. Optional flt mounting base available soon
• SC/HD-BDS (SC/HD): Includes adapter to fi all C14/C11/C9¶¬/C8/C6/C5 OTA"_s
